Studying the Peritoneum with Human Anatomy Atlas 2020

Here at Visible Body, we are always listening to our customers’ suggestions about how to improve our apps. When students and instructors at Harvard Medical School asked if we could enhance the peritoneum structure in Human Anatomy Atlas, our biomedical visualization team worked with them to create a more detailed peritoneum for both the male and female model.

peritoneum-landmarks-fem-front

The new peritoneum landmarks view (female, anterior). Image from Human Anatomy Atlas.

In this post, we’re going to show you the new and improved peritoneum model in Human Anatomy Atlas 2020 and discuss how it incorporates structures students need to know for conducting FAST (focused assessment with sonography for trauma) ultrasound exams on patients.



What is the peritoneum?

The peritoneum is the serous membrane that lines the abdominal and pelvic cavities. It has two layers: the parietal perineum, which is attached to the walls of the abdomen and pelvis, and the visceral peritoneum, which covers the internal organs. The peritoneal cavity is the fluid-filled space between the parietal and visceral peritoneum. This fluid allows the organs of the abdominal and pelvic cavities to move past one another smoothly.

peritoneum-highlighted-mThe peritoneum (male). Image from Human Anatomy Atlas.

Some folds of the peritoneum are referred to as individual structures. For example, a double-fold of peritoneum forms the mesentery, which attaches the intestines to the abdominal wall and is continuous with the serosa.

peritoneum-mesentery-and-serosa

Image from Human Anatomy Atlas.

The lesser omentum connects the liver, stomach, and part of the duodenum. It helps hold the stomach in place and also serves as a support for blood and lymph vessels that supply the organs of the upper abdomen.

peritoneum-lesser-omentum

Posterior view of the lesser omentum. Image from Human Anatomy Atlas.

The greater omentum connects the stomach, diaphragm, transverse colon, and posterior abdominal wall. It stores adipose tissue (fat) and cushions the anterior and lateral abdominal organs.

peritoneum-greater-omentum-m

Image from Human Anatomy Atlas.

All of these structures were present in the original version of Human Anatomy Atlas 2020. What we’ve added is an even more in-depth look at the regions of the peritoneum and peritoneal cavity, which you can access by highlighting the peritoneum and selecting the “landmarks” view from the info box.

peritoneum-landmarks-button-m

The peritoneum landmarks button. Image from Human Anatomy Atlas

In order to conduct diagnostic procedures like the FAST exam, medical professionals need to be familiar with these regions—so before we go into more detail on them, let’s quickly go over what the FAST exam is and why it’s clinically important.



What is a FAST exam?

Ultrasound, also called sonography, is an imaging technique in which a technician uses a small handheld device called a transducer to aim high-frequency sound waves at an area of the body. Some of these sound waves bounce back when they hit structures inside the body, and a computer analyzes these and uses them to generate an image. One of the benefits of ultrasound is that it doesn’t involve radiation like an X-Ray or CT scan. This is why it’s the imaging method of choice for looking at developing fetuses.

The FAST exam is a specific ultrasound examination used by medical professionals to look for hemorrhage or abnormal fluid in the pericardium, pleural cavity, and peritoneal cavity after traumatic injury. The eFAST (extended FAST) exam is basically the regular FAST with additional views to examine the lungs. It’s a bedside ultrasound, which means the imaging equipment can be brought to where the patient is.



Peritoneum landmarks in Human Anatomy Atlas 2020

When a FAST/eFAST exam is being conducted, there are typically a few key views that focus on a number of important structures, such as particular organs and regions of the peritoneum.

The Right Upper Quadrant (RUQ) view “uses the liver as an ultrasound window” to look for fluid in the hepatorenal space (Morison’s pouch). The right subphrenic space, which lies between the liver and diaphragm, is another place fluid can accumulate. In addition, moving the ultrasound probe towards the head (cephalad) provides a view of the right pleural space and caudal movement provides a view of the right paracolic gutter.

peritoneum-landmarks-right-upper-quadrant-fRight Upper Quadrant peritoneum landmarks (female model). Image from Human Anatomy Atlas.

The Left Upper Quadrant (LUQ) view uses the spleen to look at the left subphrenic space (the space between the spleen and the diaphragm) and the splenorenal recess (the space between the spleen and left kidney). The left pleural space and left paracolic gutter can also be examined via movement of the probe.

peritoneum-landmarks-left-upper-quadrant-f

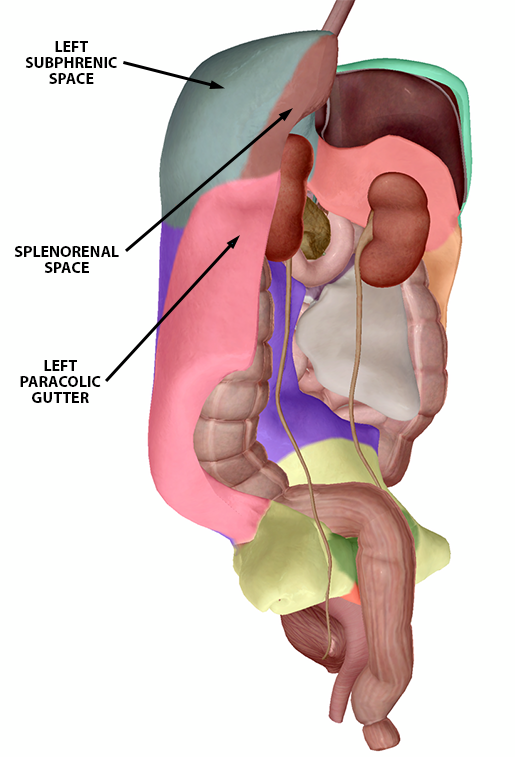

Left Upper Quadrant peritoneum landmarks (female model). Image from Human Anatomy Atlas.

The Pelvic view is used to examine the rectovesical recess or rectouterine recess. The rectovesical recess is the space between the rectum and the bladder in the male pelvis, while the rectouterine recess is the space between the rectum and the posterior uterine wall in the female pelvis.

peritoneum-landmarks-pelvis-rectouterine-fperitoneum-landmarks-pelvis-rectovesical-m

Rectouterine recess (f) and rectovesical recess (m). Images from Human Anatomy Atlas.



Other FAST-related structures in Human Anatomy Atlas 2020

A Pericardial (Subxiphoid, Subcostal) view is used to assess fluid buildup in the pericardium. It uses the liver’s left lobe as its ultrasound window. If the ultrasound probe is angled in a particular way, the inferior vena cava and hepatic veins can also be examined.

fast-exam-pericardium

The pericardium (highlighted). Image from Human Anatomy Atlas

An Anterior Thoracic view (part of eFAST or extended FAST) can be used to look at the pleural spaces. The pleural spaces can be examined from various points on each side of the chest, and such examination is important for diagnosing pneumothorax. (See Madison’s post on the Deadly Dozen for the specs on that!)

fast-exam-pleurae

The pleurae (highlighted). Image from Human Anatomy Atlas

We hope you’ve enjoyed this lightning-fast overview of the structures evaluated using the FAST exam! The peritoneum may not get a lot of glory, but it’s important to know its different regions when it comes to diagnosing and treating injuries.
