Anatomy and Physiology: The Terrific Tongue

Here’s something fun you can tell people at parties: the tongue isn’t a single muscle—it’s a muscular hydrostat. What’s a muscular hydrostat, you ask? Essentially, it’s a strong, flexible biological structure that contains a whole bunch of muscle fibers but no skeletal structure. If you need a non-tongue example, think elephant trunks and octopus tentacles. Octopuses, slugs, and the roundworm C. elegans also have muscular hydrostat bodies. Cool, right?

Anyway, because our tongues can bend, elongate, shorten, and twist so freely, they’re great for helping us swallow food and for producing an impressive inventory of unique speech sounds. They’re also the key to our sense of gustation (that is, taste).

So let’s talk about the structure and functions of humans’ weird and wonderful muscular hydrostat!


The Structure of the Tongue

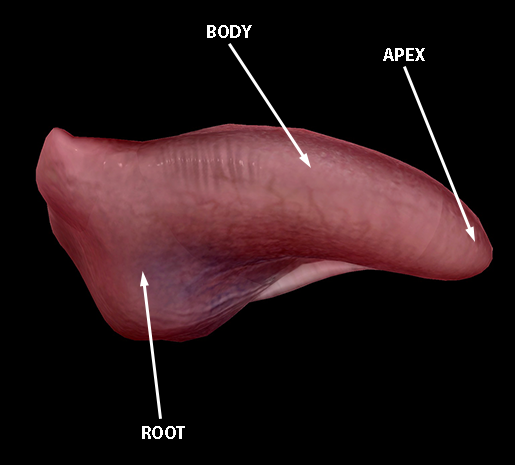

tongue-root-body-apexImage from Human Anatomy Atlas

The root of the tongue is connected to the hyoid bone via the hyoglossus and genioglossus muscles as well as the hyoglossal membrane. The body of the tongue contains both extrinsic and intrinsic muscles (more on those in a second). The apex of the tongue is the bit at the end that makes contact with the teeth. Linguists studying articulation often discriminate between the apex and the blade of the tongue—essentially, while the apex is the very tip of the tongue, the blade of the tongue is the teeth-facing region just before the apex.

If we look at the underside of the tongue, we can see the frenulum, a little web-like fold of tissue that restricts the movement of the tongue. Near where the frenulum meets the root of the tongue, we can also see the submandibular/submaxillary salivary ducts.

tongue-underside-frenulum-salivary-ductsImage from Human Anatomy Atlas

I hate to break it to you, but those little things you see sticking up out of your tongue are not your tastebuds: they’re most likely papillae. The dorsal and lateral surfaces of the tongue are home to a bunch of these small projections, and there are a few different varieties of them.

The vallate papillae, which sit in a row on the dorsum of the tongue, contain lots of tastebuds (100–300 per papilla).

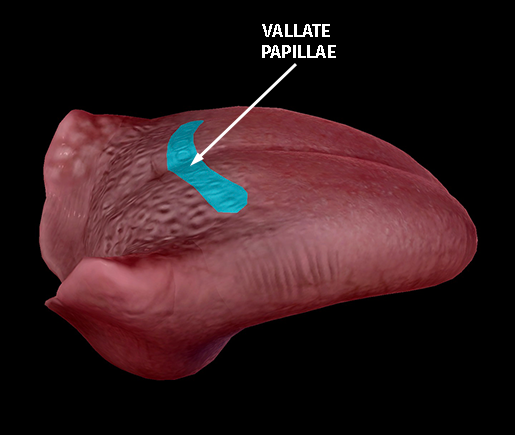

tongue-dorsum-vallate-papillae-2Image from Human Anatomy Atlas

Fungiform papillae, which contain about 5 tastebuds each, are found protruding mostly from the sides and apex of the tongue. They’re large (in the relative sense) and mushroom-shaped, thus the name “fungiform."

tongue-vallate-fungiform-papillaeImage from Human Anatomy Atlas

Foliate papillae are located in small grooves on the sides of the tongue. Though foliate papillae don’t contain tastebuds themselves, the mucous membrane that covers them does have a few tastebuds on its surface.

Lastly, filiform papillae can be found all over the tongue. They don’t contain any tastebuds, but they do have touch receptors.


Intrinsic Muscles

The four paired intrinsic tongue muscles allow the tongue to change shape.

The superior longitudinal muscles run along the tongue just below the superior surface’s mucosa. These muscles shorten the tongue and dorsiflex its tip.

The inferior longitudinal muscles are basically the inferior surface equivalent of the SL muscle. That is, it sits just above the mucosa of the inferior surface of the tongue. The IL muscle shortens and provides ventroflexion to the tongue. In addition, it allows for the retroflexion of the base of the tongue.

The transverse muscles run laterally across the tongue, connecting the medial septum and the lateral aspect of the tongue. These muscles help narrow the tongue. The vertical muscles connect the inferior and superior surfaces of the tongue. Their action is to flatten the tongue.

You can check out a nice summary of tongue movements here.


Extrinsic Muscles

The extrinsic tongue muscles are vital to the process of swallowing and help the tongue to move around in the mouth. All of these muscles originate outside the tongue and insert into it at various points.

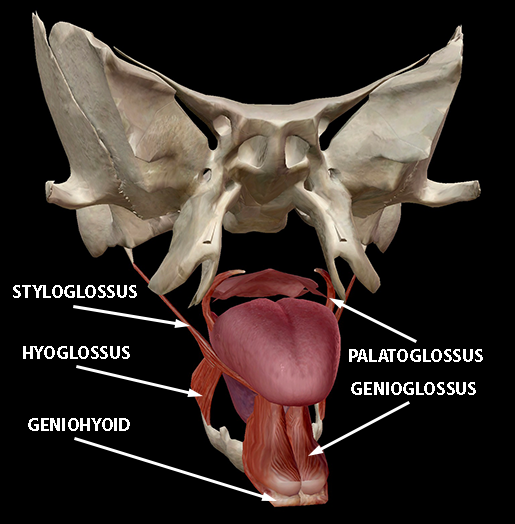

tongue-extrinsic-musclesImage from Human Anatomy Atlas

Muscle

Origin

Insertion

Action

Palatoglossus

Anterior surface of soft palate (see also: palatine aponeurosis)

Lateral border of tongue

Initiation of swallowing

Styloglossus

Anterior lateral styloid process of temporal bone

Lateral border of tongue

Pulls the sides of the tongue up and pulls tongue back (this creates a trough for swallowing)

Hyoglossus

Greater cornu of hyoid bone

Side of tongue

Depresses the tongue

Genioglossus

Inferior mental spine (process) of mandible

Tongue and hyoid

Depresses and extends the tongue

Geniohyoid

Inferior mental spine (process) of mandible

Anterior body of hyoid

Elevates hyoid, depresses mandible



Speech and Swallowing

When we produce speech, the tongue serves as a versatile articulator. Many consonant sounds are produced by a particular part of the tongue obstructing the flow of air coming up from the trachea at a particular place in a particular manner. For example, a t or d sound in English is produced when the front of the tongue touches the alveolar ridge (just behind the front teeth), briefly stopping the stream of air and then releasing it. A k or g involves the dorsum of the tongue making contact with the velum (soft palate) as it briefly blocks the air stream.

The tongue is important for vowel production, too! The position of the tongue in the mouth determines a vowel’s height (high, mid, low) and whether it is a front, central, or back vowel. For example, a high front vowel would be the “ee” in “free” and a low back vowel would be the “ah” in “spa.” The tongue also determines whether a vowel is tense or lax. Both the “ee” and “ah” I discussed are tense—the schwa (ə), as in the first syllable of “maroon,” is a good example of a lax vowel.

You can read more about the anatomy and physiology of speech sounds here. For now, let’s move on to the tongue’s role in swallowing food.

The tl;dr version is that the tongue pushes food around in the mouth while you break it up with your teeth and it pushes chewed food (now called a bolus) toward the oropharynx. The filiform papillae on the tongue make this easier by helping to increase friction between the tongue and the food.

Swallowing has an oral, pharyngeal, and esophageal stage (each one is named for the location of the bolus as it passes from the mouth, into the pharynx, and down the esophagus). Scientists break down the oral phase of swallowing liquid into two stages, and they use the more complex Process Model to describe the oral stage of swallowing solid food.

Let’s say you’re drinking a glass of water. In the oral preparatory stage, you take a sip of water and your tongue forms a seal against your soft palate, holding the water in the front of your oral cavity. Then, during the oral propulsive stage, the tip of the tongue comes up to the alveolar ridge and the tongue-velum seal is broken. The tongue continues pressing up against the top of the mouth from front to back, pushing the water towards the pharynx and initiating the pharyngeal stage of swallowing. Pretty simple.

Now let’s say you’re having a snack with your glass of water—an apple. You bite into it and then, in the stage 1 transport phase of the Process Model, the tongue pushes the piece of apple towards your back teeth so you can chew it.

Food processing begins and the movements of mastication (chewing) and secretions from your salivary glands begin the physical and chemical digestion process, forming a nice (and by nice I mean mushy and kinda gross) bolus you can swallow. As you chew, your tongue moves in cyclical motions to help keep the food in the right place.

Stage 2 transport works similarly to the oral propulsive stage: the tongue presses against the top of the mouth from back to front, moving the bolus to the back of the mouth. After that, it’s the pharynx’s turn to take over.


Taste

Though the tongue enables speech and swallowing, we probably more readily associate it with our sense of taste. So how does the sense of taste work?

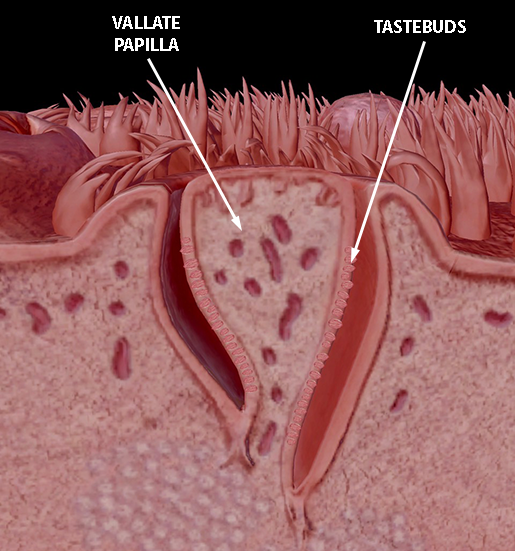

tongue-section-vallate-papilla-tastebudsImage from Human Anatomy Atlas

As I mentioned earlier, many of the papillae on the tongue’s surface contain tastebuds. Tastebuds aren’t exclusive to the tongue, though—they can be found elsewhere in the mouth and upper throat. Each tastebud contains an opening called a pore, where food dissolved in saliva can enter. It also contains specialized epithelial cells that respond to chemicals in food called tastants. Little hairs at the ends of these cells provide sites for tastant molecules to bind to receptors, which triggers an action potential.

If you’ve studied olfaction, this probably sounds like a pretty familiar process. Fun fact! The nature of the receptor cells is a key difference between gustation and olfaction: whereas receptors in the olfactory epithelium are neurons, gustatory cells are just epithelial cells with a very specific function. The gustatory cells pass on their action potential to neurons of the facial, glossopharyngeal, and vagus nerves. From there, the signals pass to the medulla oblongata, then the thalamus, and then (at last) to the gustatory cortex in the cerebrum.

Our tastebuds can detect whether something is sweet, salty, sour, bitter, or umami (savory), but we can thank our noses for the array of complex flavors we know and love. When we “taste” a flavor, olfaction is really doing about 80% of the work. Why? When you’re tasting, you’re usually smelling as well. Odorants rise off the food in your mouth while you’re chewing on it. These odorants travel through the retronasal pathway and they get picked up by the receptor cells of your olfactory epithelium.

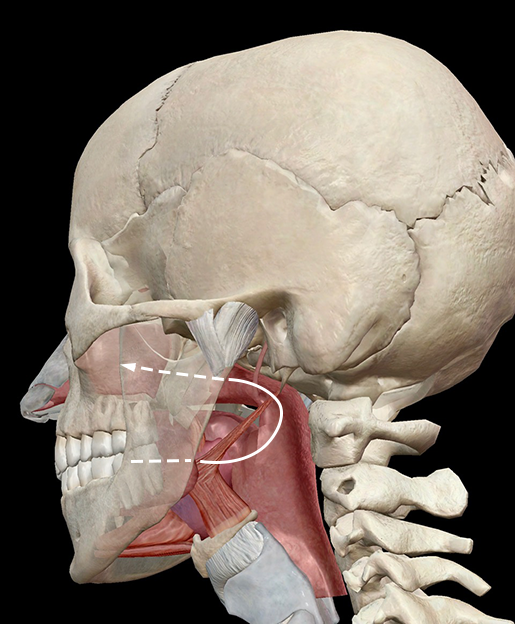

tongue-taste-smell-retronasal-pathwayImage from Human Anatomy Atlas

And there you have it! Whether you’re talking, eating, talking about eating, or talking while you’re eating (not advised), the tongue is hard at work. Its combination of intrinsic and extrinsic muscles give it great range of motion and flexibility, and its papillae contain the tastebuds that allow you to identify the foundational flavors of the food you eat.
