3D Skeletal System: Atlas, Axis, and the Atlanto-Axial Relationship
Posted on Thu, Dec 06, 2012 @ 08:17 AM by Courtney Smith
There are 33 vertebrae in your vertebral column. Or is it 24? Doesn't matter—both numbers are correct. You're born with 33, but the sacrum and coccyx fuse to the rest of the spine, making it 24 by the time you're an adult.

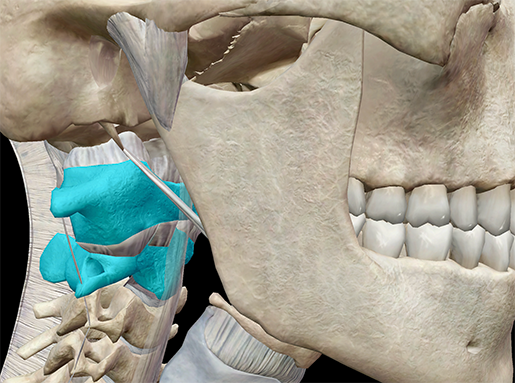

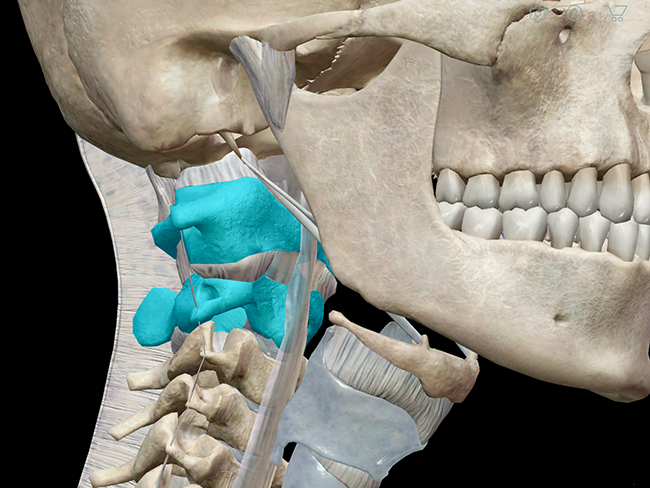

Of those 24 (not counting the sacrum and coccyx), two vertebrae are fortunate enough to have names. The atlas (C01) and axis (C02) are two of the most important vertebrae in the spine. Without them, head and neck movement would be impossible.The atlas and axis vertebrae are the two most superior bones in the vertebral column. They are part of the seven cervical vertebrae. The atlas is the top-most bone, sitting just below the skull; it is followed by the axis. Together, they support the skull, facilitate neck movement, and protect the spinal cord. (Think of them as BFFs—you won't find one without the other.)
Unlike the other vertebrae, the atlas does not have a spinous process. Instead, it is ringlike and consists of an anterior and posterior arch, as well as two lateral masses. The transverse processes (the protrusions of bone on either side of the ring) serve as the attachment sites of muscles that assist in rotating the head. The foramina (the holes) give passage to the vertebral artery and vertebral vein.
The axis is somewhat analogous to the other cervical vertebrae in shape, but it differs slightly for two reasons: its spinous process isn't as obviously bifid, and the presence of the dens. The spinous process serves as the attachment site for many muscles of the spine, particularly those close to the skull, as well as the nuchal ligament.

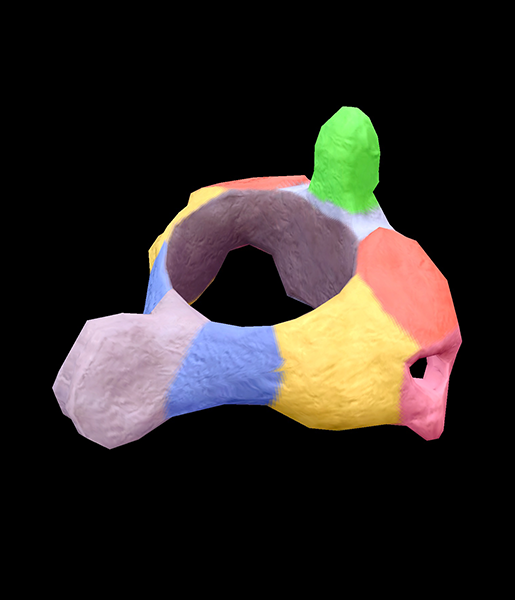

The dens (above, in green), or odontoid process, is a toothlike projection of bone that rises perpendicularly from the upper surface of the body of the axis. Its purpose is very important, but I'll get to that later.
Let's talk about joints.
There are many types of vertebral joints, but the atlas and axis form the only craniovertebral joints in the body. A craniovertebral joint is exactly what it sounds like: a joint that permits movement between the vertebral column and the skull.
The ligaments in the spine support and reinforce the joints between the vertebrae. The atlas and axis in particular work with the ligaments to move the neck. The atlas and the occipital bone form the atlanto-occipital joint, which allows neck flexion. When you nod your head as if to say "yes," that is neck flexion. The atlas and axis form the atlanto-axial joint, which allows head rotation. If you shake your head as if to say "no," that is head rotation.
The atlanto-axial joint is a compound synovial joint. A synovial joint is a freely moveable joint, differing from other types of joints due to the presence of synovial fluid, which lubricates the joint. Most of the main joints (hands, feet, and other regions in the appendicular skeleton) are synovial joints.

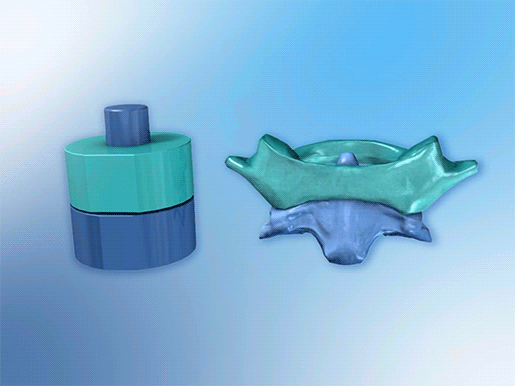

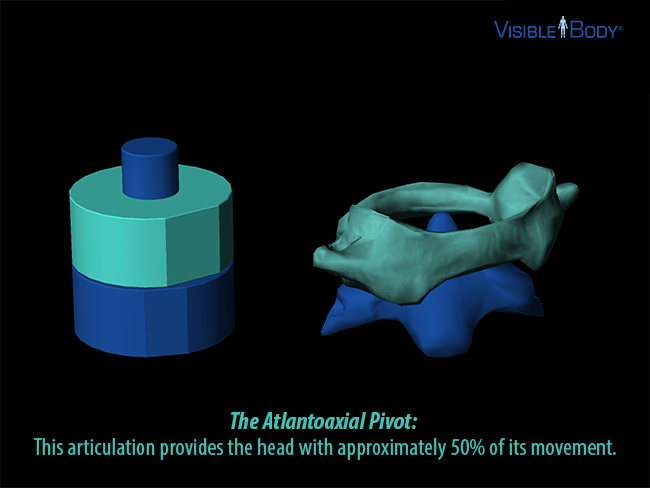

It is also a pivot joint. A pivot joint is made by the end of one articulating bone rotating in a ring formed by another bone and its ligaments. Think of a metal washer twisting around a bolt. The dens articulates with the facet on the atlas, as well as the transverse ligament, and this articulation provides the head with approximately 50% of its movement.
